Wholesale China Metal Distribution Box Factories Manufacturers – Min MOQ FTTH Fiber Optic socket panel – HTLL Detail:

Application

● FTTH Fiber Socket Panel is termination product in FTTH indoor application.

● Used in home or work area.

● Provide users with optical access or data access.

Component

● Terminal box

● Installing screws

● Heat-shrinkable tube

FTTH socket panel GMPB-E6

Technical index

● Material: ABS

● Cable diameter: Φ2, Φ3 or 2×3 drop cable

● Cable entry: 2/2

● Max capacity: 4 (single)

● Fiber radius: ≥40mm

● Tray excess loss: ≤0.01dB

● Temperature Range: - 40℃ ~ + 70℃

● Anti-shock: ≥20N.m

Product feature

● Two ports for SC
● Have Space for excess cables,easy for use and maintenance

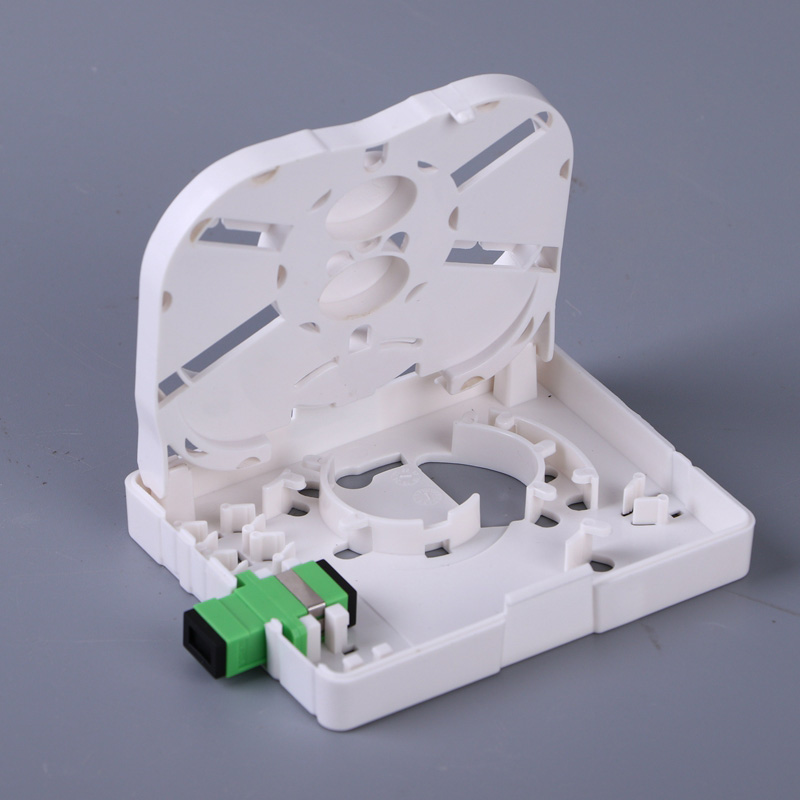

● Turnover middle panel, more space for cable routing,independent area for splicing and distribution
● Suitable for mechanical and splice connector connect.
● Suitable for wall mounted or desk-top mounted.

Model Dimension LxWxD Net weight kg Packing dimension LxWxD Gross weight kg Quantity/carton
GPMB-E 80x100x23 0.078 530*390*535 22.0 250

Installation procedure

FTTH socket panel GMPB-E8

1.  Load adapter

2. Fix the incoming cable with clamp, strip and put it to the splice slot.

3. Install pigtail with adapter,and put it to the splice slot.

FTTH socket panel GMPB-E9

4. Splice pigtail with incoming cable, and close the cover, finish installation.

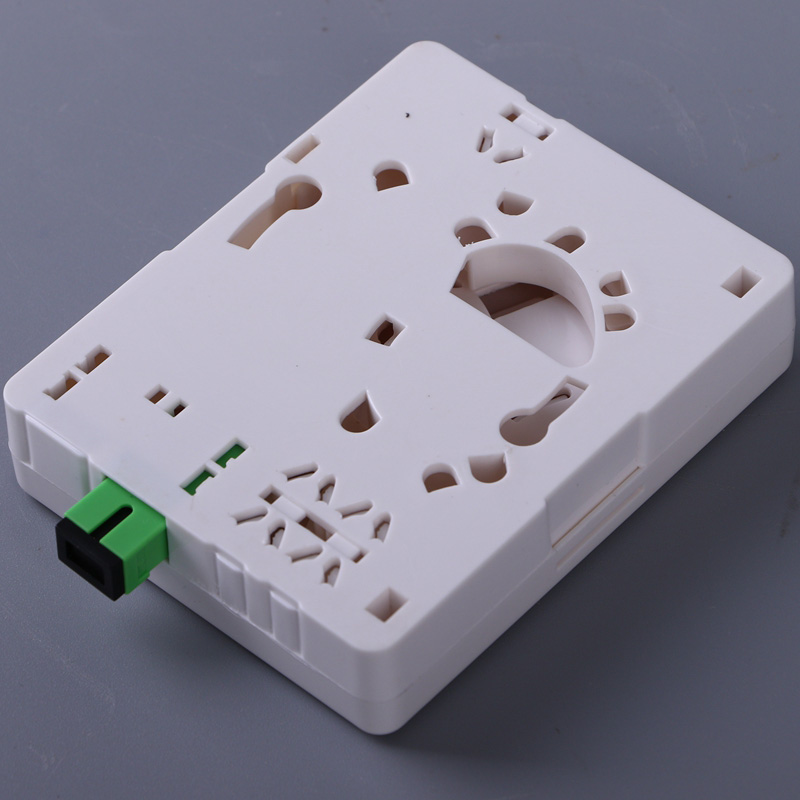

5. installing hole diameter: Φ4
installing hole dimension: 60mm


Product detail pictures:

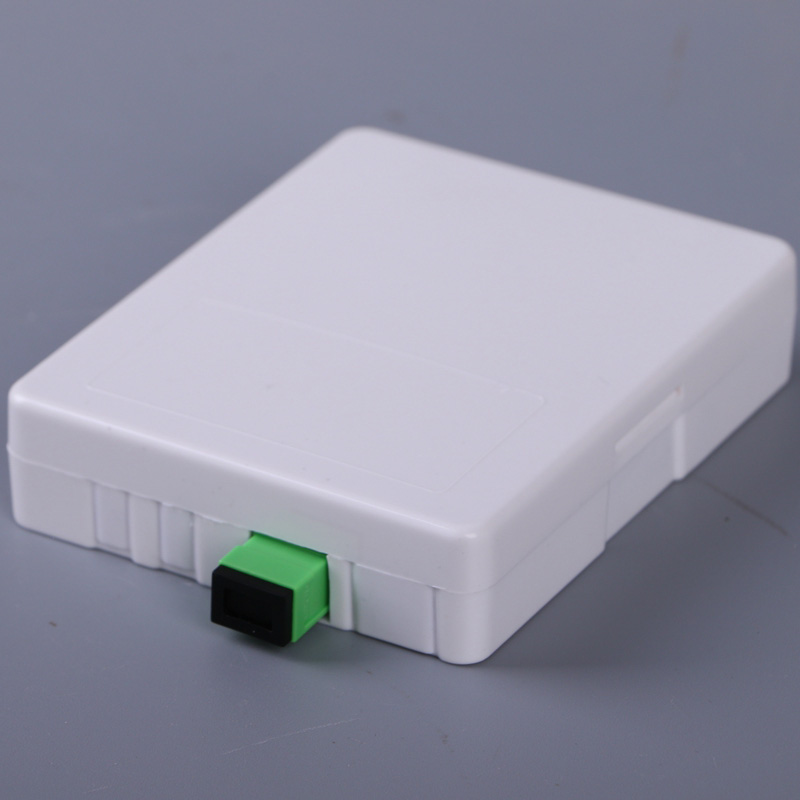

Wholesale China Metal Distribution Box Factories Manufacturers –  Min MOQ FTTH Fiber Optic socket panel   – HTLL detail pictures

Wholesale China Metal Distribution Box Factories Manufacturers –  Min MOQ FTTH Fiber Optic socket panel   – HTLL detail pictures

Wholesale China Metal Distribution Box Factories Manufacturers –  Min MOQ FTTH Fiber Optic socket panel   – HTLL detail pictures

Wholesale China Metal Distribution Box Factories Manufacturers –  Min MOQ FTTH Fiber Optic socket panel   – HTLL detail pictures
